TR4 Bluetooth Temperatur-Datenlogger

Gruppiert Produkte - Artikel
Produktname Anzahl
TR41 Bluetooth Temperatur-Datenlogger mit internem Sensor
86,00 €
zzgl. MwSt.

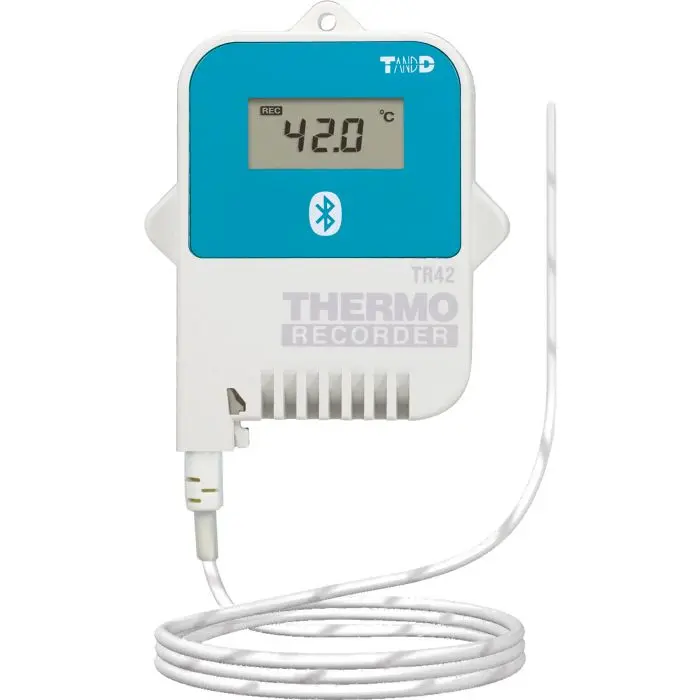

TR42 Bluetooth Temperatur-Datenlogger mit externem Sensor
103,00 €
zzgl. MwSt.
TR45 Bluetooth Temperatur-Datenlogger mit PT/TC Sensor
103,00 €
zzgl. MwSt.
  • Echtzeit-Datenüberwachung
  • Simultane Datenerfassung von mehreren Datenloggern
  • Automatischer Datenupload
  • Bis zu 16.000 Messungen Aufzeichnungskapazität

Bei der TR4-Serie von T&D handelt es sich um Temperatur-Datenlogger, die mit Bluetooth Low Energy ausgestattet sind. In Verbindung mit einem Smartphone oder Tablet sowie speziellen Apps ist die Loggerkommunikation und das Datenmanagement so einfach wie nie. T&D bietet spezielle Apps für die Echtzeit-Überwachung von Daten sowie für den Upload aufgezeichneter Daten in den kostenfreien Cloud-Service "T&D WebStorage Service" an.

Produkteigenschaften

  • Einfache Bluetooth-Kommunikation zwischen Datenlogger und Smartphone/Tablet
  • Automatische Erkennung des Bluetooth Loggers bei Öffnen der App, keine Vorregistrierung erforderlich
  • Echtzeit-Überwachung von Daten und Diagrammen, sowie Auto-Upload. Upload und Share-Funktion mit dem kostenfreien Cloud-Serive "T&D WebStorage Service"
  • 15 Aufzeichnungsintervalle (von 1 Sekunde bis zu 60 Minuten) sowie umfangreiche Aufzeichnungskapazität von 16.000 Messungen für Langzeitaufzeichnungen
  • Wasserdicht (TR41 und TR42)
  • Batterie-Lebensdauer ca. 1½ Jahre (1 Jahr für TR45)

Modellübersicht

  TR41 TR42 TR45
Sensor Thermistor (Internal) Thermistor (External) ThermocoupleType K, J, T, S Pt100, Pt1000 3-wire, 4-wire (*1)
Connection Terminal (M3.5)
Measurement Channels Temperature 1ch Temperature 1ch Temperature 1ch
Measurement Units °C, °F °C, °F °C, °F
Measurement Range -40 to 80 °C -60 to 155 °C -199 to 1700 °C -199 to 600 °C
Accuracy Avg. ± 0.5 °C

Avg. ± 0.3°C
at -20°C to +80°C

Avg. ± 0.5°C
at -40°C to -20°C
+80°C to +110°C

Avg. ± 1.0°C
at -60°C to -40°C
+110°C to +155°C

Thermocouple Measurement
Type K, J, T ± (0.3 °C + 0.3% of reading)
Type S ± (1 °C + 0.3% of reading)

Cold Junction Compensation
± 0.3 °C *at 10 to 40 °C
± 0.5 °C *at -40 to 10 °C , 40 to 80 °C

* The above temperatures are for the operating environment of the logger.
± (0.3°C + 0.3% of reading)
*at 10 to 40°C
± (0.5°C + 0.3% of reading)
*at -40 to 10°C , 40 to 80°C
*The above temperatures are for the operating environment of the logger.
Measurement Resolution 0.1 °C 0.1 °C Type K, J, T 0.1 °C
Type S 0.2 °C
0.1 °C
Responsiveness Thermal Time Constant:
Approx. 15 min.
Response Time (90%): about 35 minutes
Thermal Time Constant: Approx. 30 sec. (in air)
Approx. 4 sec. (in agitated water)
Response Time (90%): Approx. 80 sec. (in air)
Approx. 7 sec. (in agitated water)
-- --
Logging Capacity 16,000 readings
Recording Interval Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min.
Recording Mode Endless (Overwrite oldest data when capacity is full)or One Time (Stop r ecording when capacity is full)
LCD Display Items Measurements, Recording Status, Battery Life Warning, etc.
Communication Interfaces Bluetooth 4.0 (Bluetooth low energy)
Power Lithium Battery (LS14250)
Battery Life (*2) Approx. 1 month (*3) to 1.5 years (*4) Approx. 1 month (*3)to 1 year (*4)
Dimensions H 62 mm x W 47 mm x D 19 mm
Weight Approx. 45 g Approx. 50 g
Operating Environment Temperature - 40 to 80°C
(-25 to 80°C during wireless communication)
Temperature -40 to 80°C (-25 to 80°C during wireless communication)
Humidity 90 % RH or less (no condensation)
Waterproof Capacity IP67: Immersion proof P64: Splash proof (rated for use in daily life)(*5) None
Accessories -- Temperature Sensor (TR-5106) Cable Clamp
Lithium Battery (LS14250), Registration Code Label, Strap, Manual Set (W arranty Included)
Data Collection Devices Smartphone, Tablet
Software ThermoREC (Android 4.4 or later) ThermoStorage (Coming Soon)

*1: In the case of a 4-wire sensor, one wire will be left unused.
*2: Battery life varies depending upon multiple factors including ambient temperature, recording interval, usage of applications, and battery performance. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life.
*3: Estimated minimum battery life when recording data at an interval of 1 second and constant graph display in the app.
*4: Estimated maximum battery life when recording data at an interval of more than 10 seconds and graph display in the app of less than 3 minutes a day.
*5: This is the waterproof capacity of the data logger with the sensor connected.
The specifications listed above are subject to change without notice.
