Produkteigenschaften
- 4.3" TFT-LCD Display
- 2U Gehäusehöhe
- Messfunktionen: Spannung, Strom, Stromscheitelwert, Frequenz, Leistungsfaktor

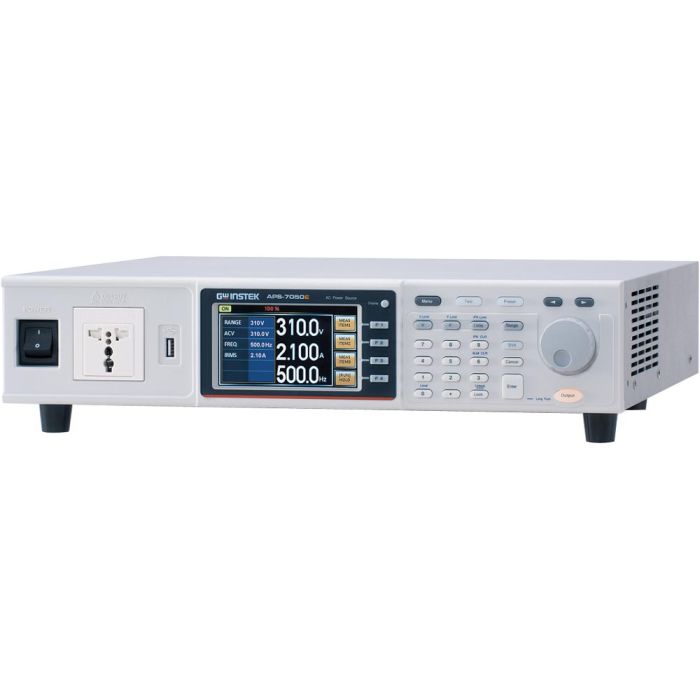

Mit der APS-7000E Serie präsentiert GW Instek die öknomische Version der programmierbaren AC Stromquellen (APS-7000). Die APD-7000E Serie eignet sich für die Entwicklung sowie Tests von DC Stromquellengeräten, Unterhaltungselektronik, Fahrzeugelektronik und elektronische Komponenten.
Produkteigenschaften
- 4.3 Zoll TFT-LCD Display
- Ausgangskapazität:
- APS-7050E: 500 VA, 310 Vrms, 4.2/ 2.1 Arms
- APS-7100E: 1000 VA, 310 Vrms, 8.4/ 4.2 Arms
- Gehäusehöhe: 2U (88 mm)
- Messfunktionen: Spannung, Strom, Stromscheitelwert, Frequenz, Leistungsfaktor
- 10 Sätze des Testmodus simulieren transiente Ausgangsleistung
- Preset-Funktion ermöglicht Speicherung 10 verschiedener Einstellungen
| Modelle | APS-7050E | APS-7100E |
| Maximum Output Capacity | ||
| Power Rating | 500 VA | 1 kVA |
| Output Voltage Setting | ||
| Range | 0~155 Vrms, 0~310 Vrms, Auto | |
| Output Maximum Current | ||
| Range | 4.2A/2.1 A | 8.4A/4.2A |
| Output Maximum Peak Current | ||
| Range | 16.8A/8.4 A | 33.6A/16.8A |
| Output Frequency Setting | ||
| Range | 45.0~500 Hz | 45.0~500 Hz |
| Resolution | 0.01 Hz(45.0~99.99 Hz) 0.1 Hz(100.0~500.0 Hz) |
0.01 Hz(45.0~99.99 Hz) 0.1 Hz(100.0~500.0 Hz) |
| Setting Accuracy | ±(0.02% of setting) | |
| Waveform | ||
| Total harmonic distortion | ≦0.5% at 45~500 Hz (Resistive load) | |
| Voltage Regulation | ||
| Line Regulation | 0.1% of full scale | |
| Load Regulation | 0.5% of full scale | |
| Measurement | ||
| Frequency | Range | 45~ 500 Hz |
| Resolution | 0.01 Hz (45.0~99.99 Hz) 0.1 Hz (100.0~500.0 Hz) |
|
| Accuracy | ±0.1Hz | |
| Voltage (r.m.s) | Range | 0.2~38.75 Vrms 38.76~77.5 Vrms 77.51~155.0 Vrms 155.1~310.0 Vrms |
| Resolution | 0.01V at 0.00~99.99 Vrms 0.1V at 100.0~310.0 Vrms |
|
| Accuracy | ±(0.5% of reading+ 2 counts) | |
| Current (r.m.s) | Range | 2.00~70.00 mA 60.0~350.0 mA 0.300~3.500 A 3.00~17.50 A |
| Resolution | 0.01 mA 0.1 mA 0.001A 0.01A |
|
| Accuracy | ±(0.6% of reading+5 counts), 2.00~350.0 mA ±(0.5% of reading+5 counts), 0.350~3.5 A ±(0.5% of reading+3 counts), 3.500~17.5 A |
|
| Power (W) | Resolution | 0.01 W 0.1 W 1 W |
| Accuracy | ||
| Power Factor | Resolution | 1 |
| Accuracy | ±(0.6% of reading+5 counts), 0.2~99.99 W ±(0.6% of reading+5 counts), 100.0~999.9 W ±(0.6% of reading+2 counts), 1000~9999 W |
|
| Memory | 10 (0~9 numeric keys) | |
| AC Input | 115/230 Vac±15% | |
| Phase | Single Phase, Two wire (1P2W) | |
| Protection | OCP, OPP, OHP and Alarm | |
| Dimension (W*H*D mm) & Weight | 430 x 88 x 400, 24 kg | 430 x 88 x 560, 38 kg |
